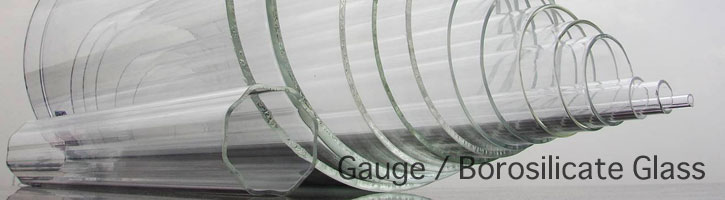

Gauge /Borosilicate Glass

Micamafco Reflex/Plain Transparent Gauge Glasses, MMC Quality

The reflex gauge glass has right-angled grooves (1) on the facing the medium.

In accordance with the physical law of total reflection, incoming light rays (2) and (3) are completely absorbed in the liquid space (4) but are directly reflected in the steam, air or vapour space. The liquid space therefore appears black the vapour pace silver white. The liquid level can thereby clearly be recognized.

The grooves are molded into the glass during manufacture and give the hard surface increased durability by comparison with the ground grooves commonly used in other glasses. The stress condition of the finished glass in checked by optical measurements.

Dimensions:

Size	Type - A			Type - B			Type - C			Type - H
	L	B	T	L	B	T	L	B	T	L	B	T
O	95	30	17	95	34	17	85	20	12	-	-	-
I	115	30	17	115	34	17	115	20	12	115	34	22
II	140	30	17	140	34	17	130	20	12	140	34	22
III	165	30	17	165	34	17	140	20	12	165	34	22
IV	190	30	17	190	34	17	165	20	12	190	34	22
V	220	30	17	220	34	17	190	20	12	220	34	22
VI	250	30	17	250	34	17	220	20	12	250	34	22
VII	280	30	17	280	34	17	250	20	12	280	34	22
VIII	320	30	17	320	34	17	280	20	12	320	34	22
IX	340	30	17	340	34	17	320	20	12	340	34	22
